Geofix di Maccaferri Aldo,    Via Podgora, 4,    Casalecchio di Reno,   Bologna,   ITALY
Vat: IT 02472441209      Mobile: +39 335298534      e-mail: maccaferri.aldo@libero.it
POLES WITH EXT. DIAM mm. 65
Material: Steel iso 630, Fe 360A
Surfece protection:
Hot deep galvanized DIN EN ISO 1461
External diameter: mm. 65
Internal diameter: mm. 57
N 3 fixing nuts on top: M16
Heights available: cm. 120, cm. 160, cm. 180

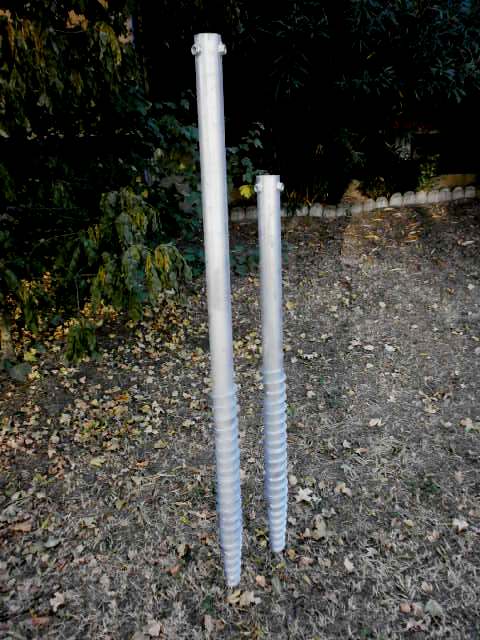

SIMPLE SCREW FOUNDATIONS

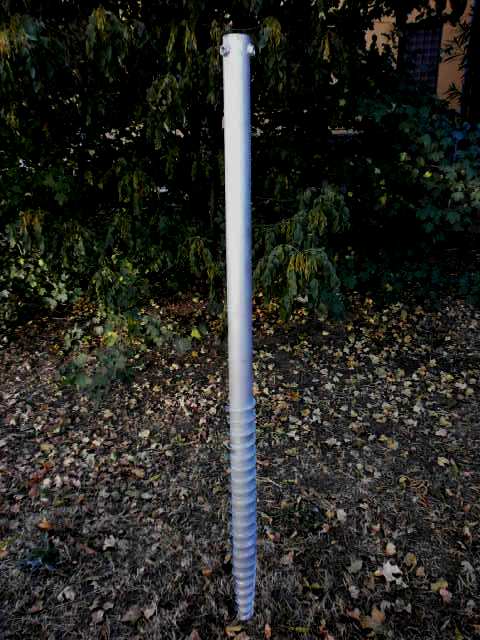

On request all flanged poles described are available without flange, such as many other pieces of different measures that can be ordered on customer design.

POLES WITH EXT. DIAM mm. 76
Material: Steel iso 630, Fe 360A
Surfece protection:
Hot deep galvanized DIN EN ISO 1461
External diameter: mm. 76
Internal diameter: mm. 58
N 3 fixing nuts on top: M16
Heights avilable: cm. 120, cm. 160, cm. 180, cm. 200.

VIDEO GEOFIX
