POLES WITH EXT. DIAM. mm. 76
Material: Steel iso 630, Fe 360A
Surface protection:
Hot deep galvanized DIN EN ISO 1461
External diameter: mm. 76
Internal diameter: mm. 68

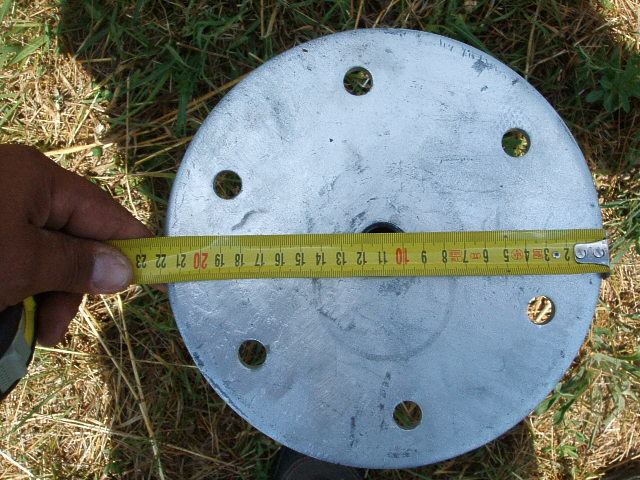

Flange diameter: mm. 220
Thikness flange: mm. 6
N 1 fixing nut in the middle of the flange: M24
N 6 fixing hole around the flange
Heights available: cm. 120, cm. 160, cm. 180, cm. 200.

FLANGED POLES

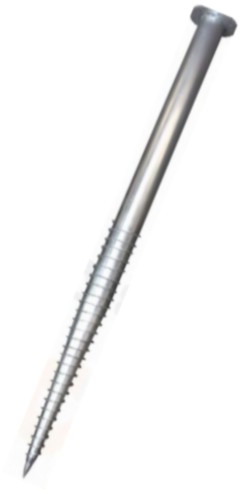

POLES WITH EXT. DIAM. mm. 114
Material: Steel iso 630, Fe 360A
Surface protection:
Hot deep galvanized DIN EN ISO 1461
External diameter: mm. 114
Internal diameter: mm. 108
Flange diameter: mm. 220
Thikness flange: mm. 8
N 1 fixing nut in the middle of the flange: M24
N 6 fixing hole around the flange
Heights available: cm. 120, cm. 160, cm. 180, cm. 200.

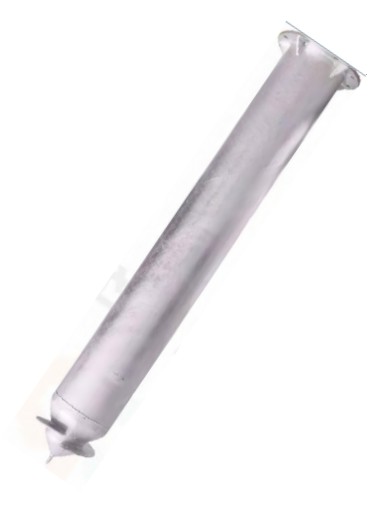

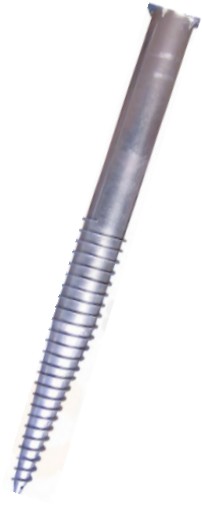

POLES WITH EXT. DIAM. mm. 168
Material: Steel iso 630, Fe 360A
Surface protection:
Hot deep galvanized DIN EN ISO 1461
External diameter: mm. 168
Internal diameter: mm. 157
Flange diameter: mm. 250
Thikness flange: mm. 8
N 8 fixing hole around the flange
Heights available: cm. 260..

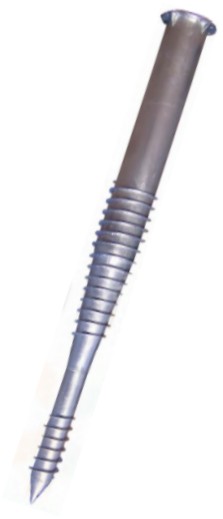

POLES WITH EXT. DIAM. mm. 219
Material: Steel iso 630, Fe 360A
Surface protection:
Hot deep galvanized DIN EN ISO 1461
External diameter: mm. 219
Internal diameter: mm. 206
Flange diameter: mm. 298
Flange thickness: mm. 12
N 8 fixing hole diam. mm. 22 around the flange
Heights available: cm. 270. - cm. 350
